Components of scaffolding HAKI NORD

Post standard (with flange)

CODE

DIMENSION
(mm)

WEIGHT
(kg

Post standard (with flange)

FSB 050

FSB 101

FSB 151

FSB 201

FSB 310

500

1000

1500

2000

3000

3,60

6,40

9,20

12,20

17,80

Post standard (w/o flange, with spigot)

CODE

DIMENSION
(mm)

WEIGHT
(kg

Post standard (w/o flange, with spigot)

FSBN 050

FSBN 101

FSBN 151

FSBN 201

FSBN 310

500

1000

1500

2000

3000

3,20

5,90

8,50

11,20

16,50

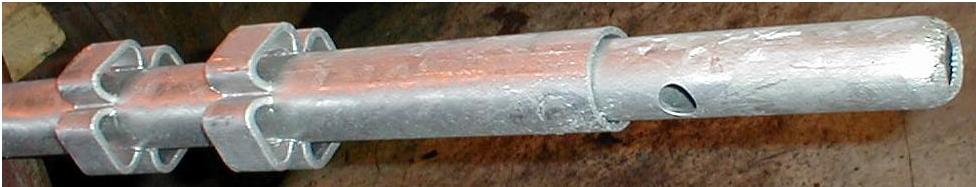

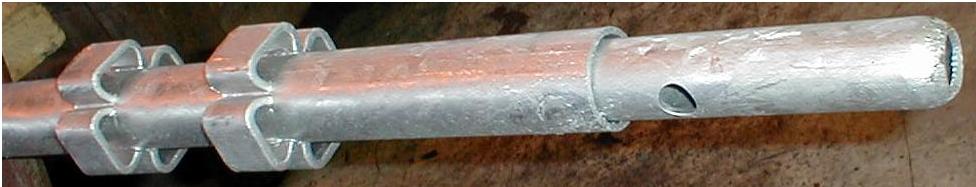

Post standard (one – level stirrups, with spigot)

CODE

DIMENSION
(mm)

WEIGHT
(kg

Post standard (one – level stirrups, with spigot)

Post standard (one – level stirrups, with spigot)



FSBR 050

FSBR 101

FSBR 151

FSBR 201

FSBR 310

500

1000

1500

2000

3000

3,20

5,90

8,50

11,20

16,50

Longitudinal beam (Ledger beam)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Longitudinal beam (Ledger beam)

LB 160

LB 190

LB 245

LB 300

LB 360

LB 400

1600

1900

2450

3000

3600

4000

9,50

10,60

14,30

17,80

20,00

23,00

Transom beam (double tube)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Transom beam (double tube)

TB 030

TB 050

TB 072

TB 100

TB 120

TB 160

300

514

720

1000

1200

1605

1,90

2,60

3,40

4,50

5,80

6,80

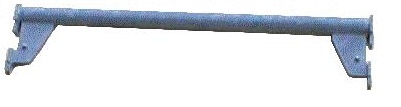

Transom beam (single tube)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

Transom beam (single tube)

ERB 050

ERB 072

ERB 100

ERB 120

ERB160

ERB 190

ERB 245

ERB 300

514

720

1000

1200

1605

1914

2450

3000

3,80

4,60

5,70

6,50

8,10

9,30

11,40

13,60

Single tube guard rail (railing)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Single tube guard rail (railing)

SKR 051

SKR 072

SKR 100

SKR 120

SKR 160

SKR 191

SKR 245

SKR 300

514

720

1000

1200

1605

1914

2450

3000

1,60

1,90

2,30

2,70

3,30

5,60

6,90

8,30

Diagonal brace (without couplers)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Diagonal brace (without couplers)

DSLB 120

DSLB 160

DSLB 190

DSLB 245

DSLB 300

1950

2340

2570



3500

7,90

9,20

10



13,80

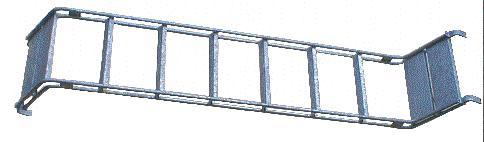

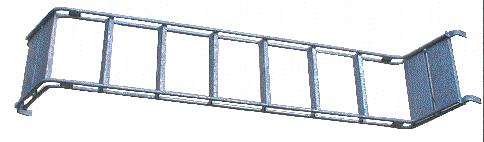

Ladder stairs

CODE

DIMENSION
(mm)

WEIGHT
(kg)



 Ladder stairs



STV 120

STV 160

1200

1605

25,30

25,70

 Adjustable footing (Screw base -avg. 38mm)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Adjustable footing (Screw base -avg. 38mm)

PTSA 060

600

4,1

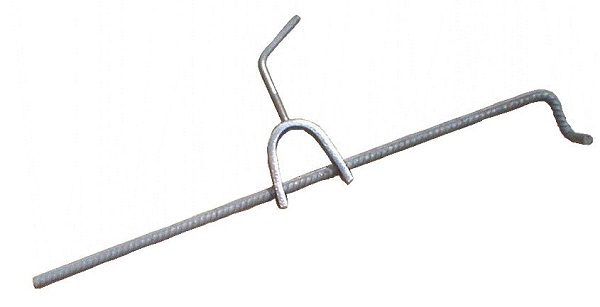

Anchors (Tie wall-rod, tie wall-u strap)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Anchors (Tie wall-rod, tie wall-u strap)

KOTA (SVF) 080

 KOTR (BVF)

800

-

0,82

0,35

Clamp

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Clamp

CLM (LFT)



0,60

Transom beam - higher ( single tube)

CODE

DIMENSION
(mm)

WEIGHT
(kg)

 Transom beam - higher ( single tube)

ERBH

1650

9,70

Console (Bracket)

CODE

DIMENSION (mm)

WEIGHT (kg)

  Console (Bracket)  Console (Bracket)

SK 030

SK 047

SK 050

SK 072

SK 120

300

470

500

720

1200

2,90

2,90

5,90

6,90

11,50

Beam rider (on long beam)

CODE

DIMENSION (mm)

WEIGHT (kg)

 Beam rider (on long beam)

BRL



2,60

Beam rider (on transom beam)

CODE

DIMENSION

(mm)

WEIGHT

(kg)

 Beam rider (on transom beam)

BRH



2,60

Beam rider

CODE

DIMENSION (mm)

WEIGHT (kg)

 Beam rider

BRS



2,50
